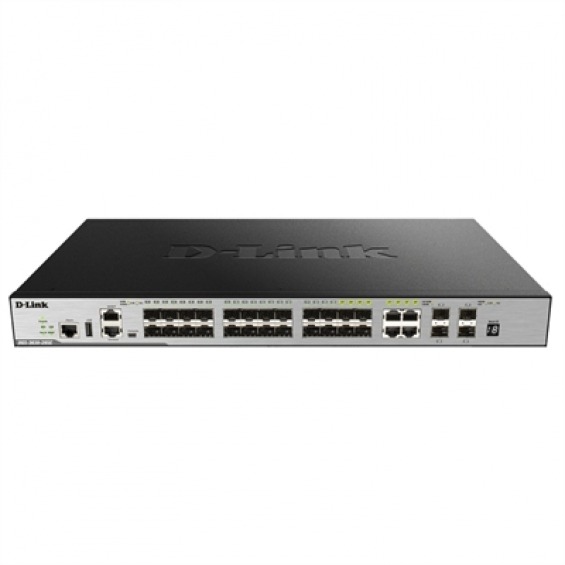

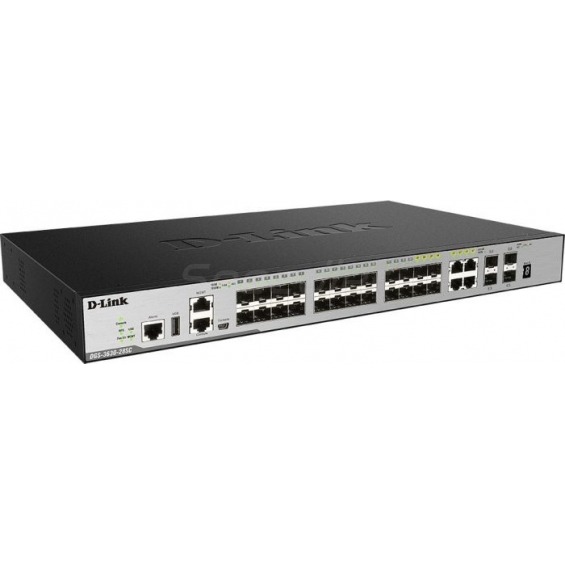

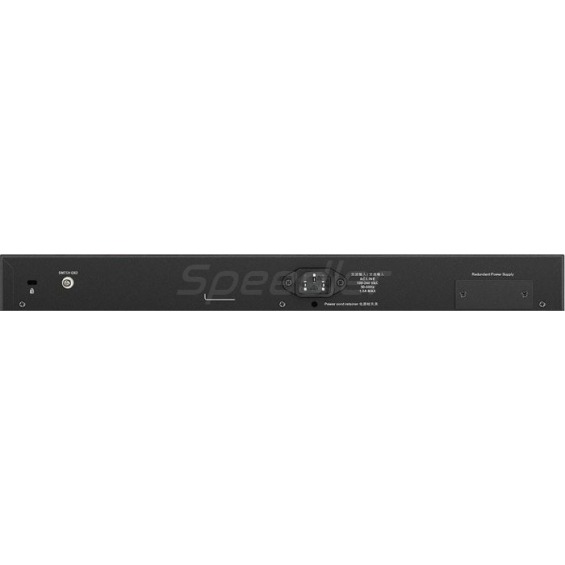

D-LINK DGS-3630-28SC SWITCH L3 24XSFP 4X10GB (DGS-3630-28SC/SI)
- Fabricante: D-LINK P/N: DGS-3630-28SC/SI Código: 1368405
| Referencia | DGS-3630-28SC/SI |
| Gama | Alta |
| EAN/UPC | 790069425608 |
| Tipo Usuario | Profesional |
| Marca | D-Link |
| Marca | D-Link |
| Modelo | DGS-3630-28SC/SI |
| Puertos | 20 x SFP 4 x 1000BASE-T/SFP combo 4 x 10 GbE SFP+ Console Port: RJ45 and Mini USB console ports for out-of-band CLI management Management Port: 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management Alarm Port: 1 x RJ-45 USB Port: 1 x USB 2.0 Type A |
| Despempeño | Switching Capacity: 128 Gbps Maximum Packet Forwarding Rate: 95.24 Mpps Packet Buffer: 4 MBytes MAC Address Table: 68K entries IPv4 Routing Table: 16K entries IPv6 Routing Table: 7K entries IPv4 Forwarding Table: 32K entries IPv6 Forwarding Table: 16K entries Jumbo Frame Size: 12 KBytes |
| Características | Stackability Physical Stacking Virtual Stacking/Clustering of up to 32 units L2 Features MAC Address Table : up to 68K entries4 Flow Control Spanning Tree Protocol Jumbo Frame: up to 12 Kbytes 802.1AX Link Aggregation ERPS (Ethernet Ring Protection Switching) version 2 Port Mirroring Flow Mirroring VLAN Mirroring RSPAN L2 Protocol Tunneling VLAN 802.1Q 802.1v Protocol-based VLAN Double VLAN (Q-in-Q) Port-based VLAN MAC-based VLAN Subnet-based VLAN Private VLAN VLAN Group Multicast VLAN (ISM VLAN for IPv4/IPv6) Voice VLAN Auto Surveillance VLAN VLAN Trunking GVRP: Up to 4K dynamic VLANs Asymmetric VLAN L2 Multicast MLD Snooping IGMP Snooping PIM Snooping L3 Features IPv4 ARP/IPv6 ND: support up to 32K/16K4 Gratuitous ARP IP Interface Loopback Interface Proxy ARP IPv6 Tunneling VRRP v2/v3 IP Helper L3 Routing Supports 16K hardware routing entries shared by IPv4/IPv6 Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62 Static Route IPv4/IPv6 Default Route PBR (Policy-based Route) Null Route Route Preference Route Redistribution Graceful Restart (GR) Helper BFD (Bidirectional Forwarding Detection) RIPv1/v2/ng L3 Multicast IGMP/MLD Filtering QoS (Quality of Service) 802.1p 8 queues per port Queue Handling Congestion Control 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port Bandwidth Control Policy Map CoS based on: Three Color Marker ACL (Access Control List) ACL based on Max. ACL entries Time-based ACL Security Port Security Broadcast/Multicast/Unicast Storm Control D-Link Safeguard Engine DHCP Server Screening Dynamic ARP Inspection IP Source Guard DHCP Snooping IPv6 Snooping Dynamic ARP Inspection (DAI) DHCPv6 Guard IPv6 Route Advertisement (RA) Guard IPv6 ND Inspection Duplicate Address Detection (DAD) ARP Spoofing Prevention L3 Control Packet Filtering Unicast Reverse Path Forwarding (URPF) Traffic Segmentation SSL SSH BPDU Attack Prevention DOS Attack Prevention NetBIOS/NetBEUI filtering AAA 802.1X Authentication Web-based Access Control (WAC) Compound Authentication MAC-based Access Control (MAC) Guest VLAN Microsoft® NAP Privilege Level for Management Access RAIDUS and TACACS+ Authentication Authentication Database Failover RADIUS/TACACS+ Accounting Management NTPv3/v4 Precision Time Protocol (PTP) Web-based GUI Command Line Interface (CLI) Telnet Server for IPv4/IPv6 access Telnet Client for IPv4/IPv6 SNMP SNMP Trap TFTP Client for IPv4/IPv6 FTP Client for IPv4/IPv6 IPv4 SFTP Server RCP System Log for IPv4/IPv6 Syslog Server SMTP RMONv1 RMONv2 Command Logging LLDP/LLDP-MED D-Link Discover Protocol (DDP) DHCP Client option 12 DHCP Auto-configuration DHCP Auto-image DHCP Relay option 60/61/62/18/37/125 DHCP/DHCPv6 Local Relay DHCP Server DHCPv6 Prefix Delegation (PD) Multiple Images/ Multiple Configurations DNS Relay for IPv4/IPv6 DNS Client for IPv4/IPv6 Debug Command Password Recovery/ Encryption Ping/ Traceroute for IPv4/IPv6 Microsoft® Network Load Balancing (NLB) Switch Resource Management (SRM) sFlow D-Link License Management System (DLMS) |
| Otras Caracteristicas | Consumo Máximo: 63.58W Consumo: 30.1W Dimensiones: 441 x 259.8 x 44 mm Peso: 3.79 kg EMI/EMC: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
-/-
