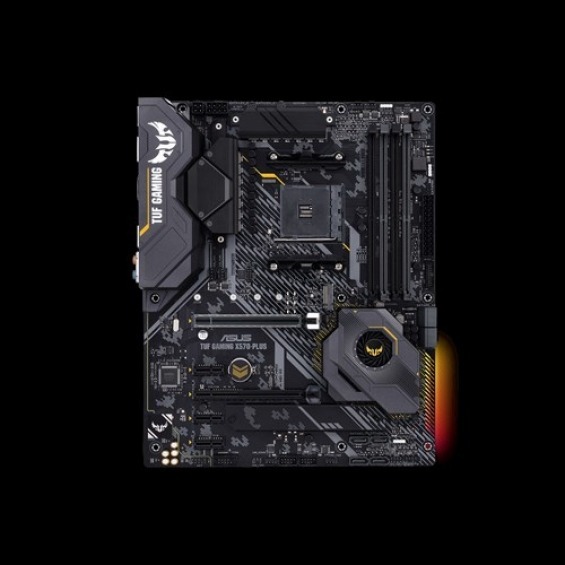

Asus Placa Base TUF X570-Plus Gaming ATX Socket AM4 (90MB1180-M0EAY0)

AMD AM4 Socket AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

AMD X570

4 x Memoria DIMM, Max. 128GB, DDR4 MHz Un-buffered
3rd Gen AMD Ryzen™ Processors
Arquitectura de memoria Dual Channel
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
ECC Memory (ECC mode) support varies by CPU.
Visita www.asus.com o el manual de usuario para consultar la lista de vendedores cualificados (QVL).

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Múltiples salidas VGA: HDMI/DisplayPort
- Compatible con DisplayPort con una resolución máxima de 4096  x 2160  a 60  Hz
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz

3rd and 2nd Gen AMD Ryzen™ Processors
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Compatible con AMD CrossFireX™ Technology

3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (modo x16)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (modo x16)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (modo x8)
AMD X570 chipset
1 x PCIe 4.0 x16 (máx. a modo x4)
3 x PCIe 4.0 x1

3rd Gen AMD Ryzen™ Processors :
1 x zócalo 3 M.2 with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™ Processors :
1 x zócalo 3 M.2 , with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x zócalo 3 M.2 with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x puertos SATA 6Gb/s
Compatible con Raid 0, 1, 10

Realtek® L8200A
Utilidad ASUS Turbo LAN
TUF LANGuard

Realtek® ALC S1200A 8 canales CODEC de audio de alta definición
Características de audio:
- Exclusive DTS Custom for GAMING Headsets.
- Aislamiento de audio: Asegura la separación de las señales de sonido y las digitales, lo que reduce las interferencias notablemente.
- Capas dedicadas para audio: Las capas separadas para los canales derecho e izquierdo protegen las señales débiles de audio.
- Condensadores fabricados en Japón con un sonido realista, cálido y natural
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x puerto(s) USB 3.2 Gen 1 (4 en panel posterior, )
AMD X570 chipset :
3 x puerto(s) USB 3.2 Gen 2 (3 en panel posterior, , 2 x Tipo A+1 x Tipo C)
AMD X570 chipset :
2 x puerto(s) USB 3.2 Gen 1 (2 en placa)
AMD X570 chipset :
4 x puerto(s) USB 2.0 (4 en placa)

ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
Características exclusivas ASUS :
- AI Suite 3
- Ai Charger
Soluciones térmicas ASUS :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
AURA :
- Control de iluminación Aura
- Conectores para tiras RGB
- Addressable Gen 2 Header
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, LED indicador de arranque de dispositivo)
- ASUS Q-Slot
- ASUS Q-DIMM
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- Highly Durable components
- ESD Guards

1 x Puerto combo teclado/ratón PS/2
1 x DisplayPort
1 x HDMI
1 x Red (RJ45)
1 x Salida S/PDIF óptica
5 x Jack(s) de audio
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C^TM)

2 x Conector(es) USB 2.0 soporta(n) 4 USB 2.0 extra
1 x Zócalo M.2 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
8 x Conector(es) SATA 6Gb/s
1 x Conector(es) ventilador de CPU
3 x Conector(es) ventilador chasis
1 x Conector Ventilador CPU OPT
1 x Conector de alimentación EATX de 24 contactos
1 x Conector de alimentación ATX 12V de 8 contactos
2 x Aura RGB Strip Header(s)
1 x Conector de alimentación ATX 12V de 4 contactos
1 x Addressable Gen 2 header(s)
1 x Conector de audio en panel frontal (AAFP)
1 x Paneles del sistema
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
1 x Jumper Clear CMOS
1 x AIO_PUMP connector
1 x Conector puerto COM
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Manual de usuario
Protección de E/S
2 x Cable(s) SATA 6Gb/s
1 x DVD de soporte
1 x Tornillos M.2
1 x Tarjeta de certification TUF
1 x TUF GAMING Sticker

256Mb Flash ROM, BIOS UEFI AMI, PnP, BIOS SM 3.2, ACPI 6.2, BIOS multilenguaje, ASUS EZ Flash 3, BIOS CrashFree 3, F6 Qfan Control, F3 Mis favoritos, F4 AURA ON / OFF, Último registro modificado, F9 Información de la memoria Search, F12 PrintScreen y ASUS DRAM SPD (Serial Presence Detect)

WOL by PME, PXE

Windows® 10 64-bit

Formato de fábrica ATX
12.0  pulgadas x 9.6  pulgadas ( 30.5  cm x 24.4  cm )
