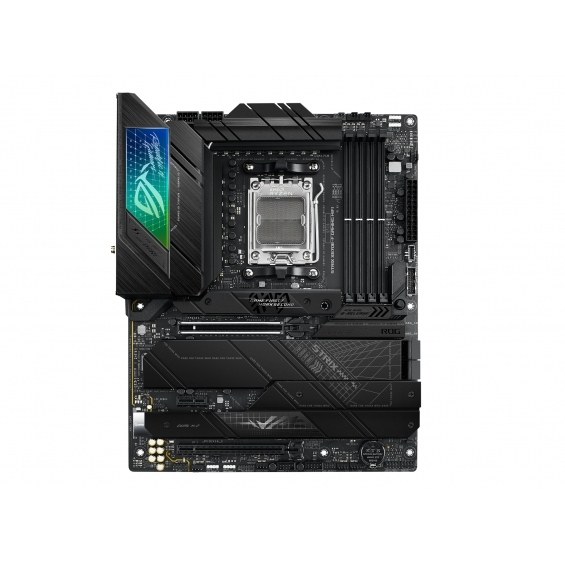

Asus Placa Base ROG Strix X670E-F Gaming WiFi ATX Socket AM5 (90MB1BA0-M0EAY0)
- Fabricante: ASUS P/N: 90MB1BA0-M0EAY0 Código: 1531902
428, 21 €
(Impuesto incl.) Placa base ASUS ROG Strix X670E-F Gaming WiFi ATX para AMD Ryzen™ AM5, 16 + 2 etapas de potencia, compatible con DDR5, cuatro ranuras M.2 con disipadores térmicos, USB 3.2 Gen 2x2, PCIe® 5.0, WiFi 6E, AI Cooling II y Aura Sync
- Procesadores de sobremesa AMD Ryzen™ serie 7000 con socket AM5 de AMD.
- Solución de alimentación sólida: 16 + 2 etapas de potencia agrupadas con conectores de alimentación ProCool II de 8 + 8 pines, bobinas de aleación de gran calidad y condensadores duraderos para soportar procesadores multinúcleo.
- Diseño térmico optimizado: disipadores térmicos del VRM masivos y cubierta de aluminio integrada para las entradas y salidas, almohadilla térmica de alta conductividad, caloducto en forma de L, cuatro disipadores térmicos M.2 integrados y una placa posterior M.2 para la ranura M.2_1.
- Tecnología de overclocking: Dynamic OC Switcher, Ryzen Core Flex, reloj asíncrono y mejoras de PBO.
- Red de alto rendimiento: WiFi 6E integrado, Ethernet Intel® de 2,5 Gb y ASUS LANGuard.
- Conectividad gaming más rápida: PCIe® 5.0, dos ranuras PCIe 5.0 M.2 integradas, conector frontal USB 3.2 Gen 2x2 y cabezal Thunderbolt™.
- Audio líder del sector: ROG SupremeFX ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III.
- Personalización inigualable: iluminación RGB Aura Sync exclusiva de ASUS, incluido un cabezal RGB y tres cabezales RGB Gen 2 direccionables.
- Diseño DIY fácil de usar: escudo de entradas y salidas premontado, ranura PCIe, Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS FlashBack™, botón Clr CMOS, FlexKey , SafeSlot y Safe DIMM.
- Control inteligente: herramientas exclusivas de ASUS que incluyen refrigeración (AI Cooling II), redes (AI Networking) y cancelación de ruido bidireccional con IA para una configuración fácil.
- Software de prestigio: incluye 60 días de prueba gratuita de AIDA64 Extreme y un panel de control intuitivo de BIOS UEFI.
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670 |
| Memoria | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Gráficos | 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1. |
| Ranuras de expansión | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slots (supports x16 mode) AMD X670 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
| Almacenamiento | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) 2 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
Puertos de E/S del panel posterior | 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®) 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®) 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Conectores de E/S internos | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
Características especiales | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
Funciones de software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ VRM Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manejabilidad | WOL by PME, PXE |
| Accesorios | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate Documentation 1 x User guide |
| Sistema operativo | Windows® 10 64-bit, Windows® 11 64-bit |
| Factor de forma | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
