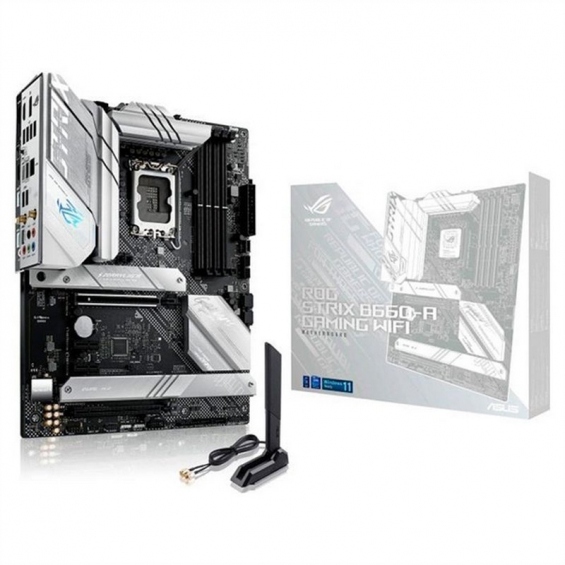

Asus Placa Base ROG Strix B660-A Gaming WiFi ATX LGA1700 (90MB1B00-M0EAY0)
- Fabricante: ASUS P/N: 90MB1B00-M0EAY0 Código: 1397713
Placa base Intel® B660 LGA 1700 ATX con PCIe® 5.0, 12+1 etapas de potencia, soporte DDR5, ASUS Enhanced Memory Profile, cancelación de ruido bidireccional, refrigeración y redes con IA, Wi-Fi 6 (802.11ax), Intel 2.5 Gb Ethernet, tres ranuras M.2 PCIe 4.0 con disipadores, USB 3.2 Gen. 2x2 de tipo C®, SATA e iluminación Aura Sync RGB
- Zócalo LGA 1700 para procesadores Intel® Core™, Pentium® Gold y Celeron® de 12.ª Gen.
- Solución de alimentación optimizada: 12+1 etapas de alimentación con tomas ProCool, chokes de aleación de alta calidad y condensadores resistentes para procesadores multinúcleo.
- Diseño térmico optimizado: Cubierta de E/S integrada, disipadores VRM con almohadillas térmicas de alta conductividad y tres disipadores M.2.
- Redes de alto rendimiento: Intel® Wi-Fi 6 (802.11ax) y Ethernet Intel® de 2,5 Gb con ASUS LANGuard.
- La mejor conectividad gaming: Soporta salidas HDMI® 2.1 y DisplayPort™ 1.4, tres ranuras M.2 y USB 3.2 Gen. 2x2 de tipo C®.
- Control inteligente: Funciones de refrigeración, redes y cancelación de ruido asistidas por IA para simplificar la configuración y mejorar el rendimiento.
- DIY fácil: M.2 Q-Latch, escudo de E/S, botón BIOS FlashBack™ y Q-LED.
- Personalización inigualable: Iluminación RGB Aura Sync exclusiva de ASUS con un conector RGB y tres direccionables de 2.ª Gen.
- El sonido líder de la industria gaming: ALC4080 con amplificador Savitech SV3H712, DTS® Sound Unbound™ y Sonic Studio III.
- Software de calidad: Prueba gratuita AIDA64 Extreme de 60 días y el intuitivo panel de control UEFI BIOS con MemTest86.
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B660 Chipset |
| Memoria | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Gráficos | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1 **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Ranuras de expansión | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot*** Intel® B660 Chipset** 1 x PCIe 3.0 x16 slot*** (max x4) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in Chapter 1 /support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Almacenamiento | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x USB Type-A) 3 x USB 3.2 Gen 1 ports (2 x USB Type-A+1 x USB Type-C®) 4 x USB 2.0 ports (4 x USB Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (1 x USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin header support additional 3 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features -SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
Puertos de E/S del panel posterior | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x USB Type-A) 3 x USB 3.2 Gen 1 ports (2 x USB Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x USB Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Conectores de E/S internos | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
Características especiales | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - ROG AURA sync Armor - AURA RGB header - Addressable Gen 2 headers |
Funciones de software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility - TurboV EVO -EPU DIGI+ VRM ASUS CPU-Z MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manejabilidad | WOL by PME, PXE |
| Accesorios | Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Sistema operativo | Windows® 11 64-bit, Windows® 10 64-bit |
| Factor de forma | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
-/-
