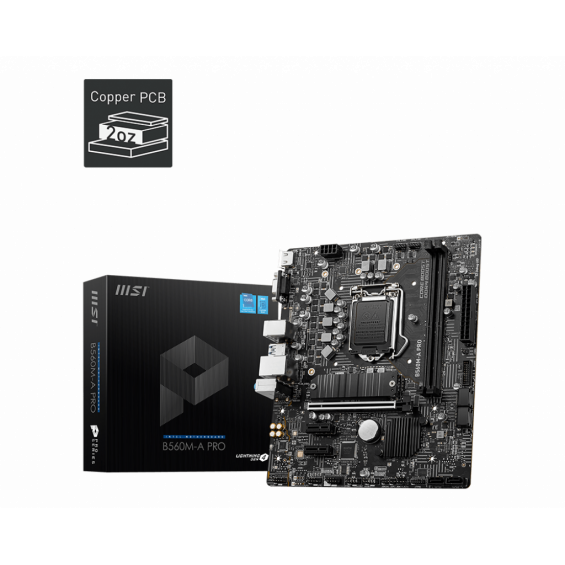

Msi Placa Base B560M-A Pro mATX LGA1200 (911-7D20-002)

CPU

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1200

1. Please go to intel.com for compatibility information

CHIPSET

Intel^® B560 chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5200 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• 2x PCIe 3.0 x1 slots (From B560 chpiset)

ONBOARD GRAPHICS

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz¹²
• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

AUDIO

• 7.1-Channel High Definition Audio

LAN

STORAGE

• 6x SATA 6Gb/s ports (From B560 chipset)
• 1x M.2 slot (Key M)¹
  • Supports up to PCIe 4.0 x4 for 11th Gen Intel^® CPU (From CPU)
  • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel^® CPU (From B560 chipset)¹
  • Supports 2242/ 2260/ 2280 storage devices
• Supports Intel^® Smart Response Technology for Intel Core^™ processors

1. Intel^® Optane^™ Memory Ready. Before using Intel^®® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel^® B560 Chipset

• 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)

FORM FACTOR

• Miro-ATX Form Factor
• 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)

BIOS FEATURES

• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SMBIOS 3.0
• Multi-language

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x M.2 slot (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Serial port connector
• 1x Tuning Controller Connector

BACK PANEL CONNECTORS
